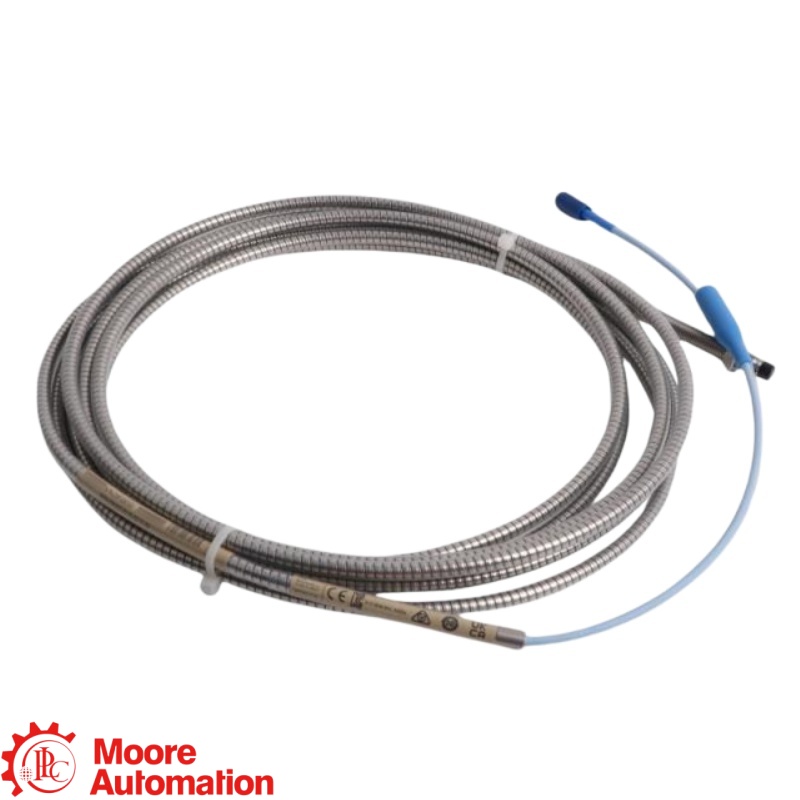

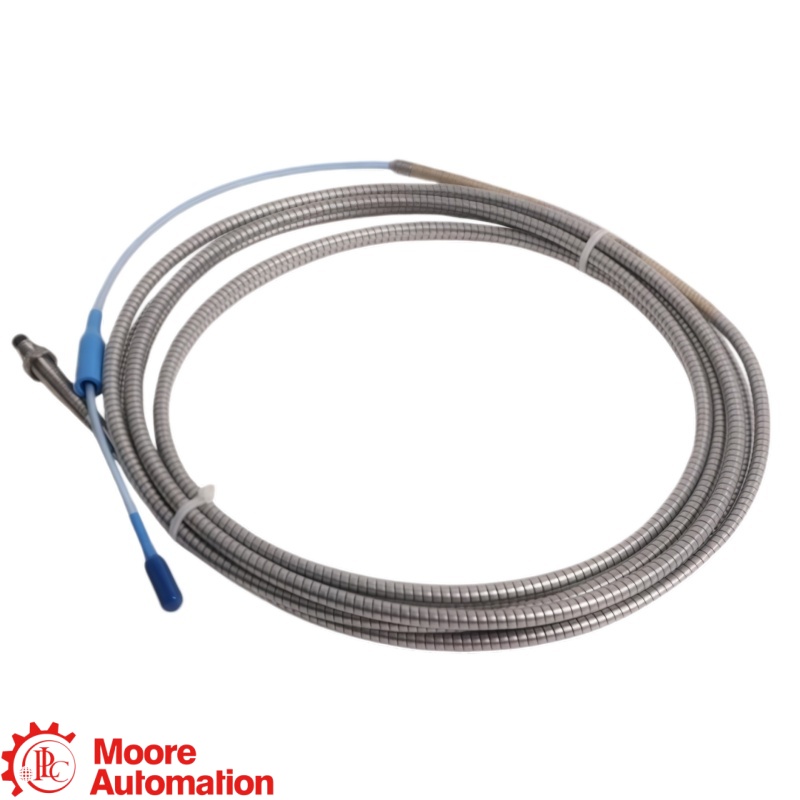

Bently Nevada 330102-00-25-10-02-00 3300 XL 8 mm Standard-Mount Armored Proximity Probe

3300 XL 8 mm · STANDARD MOUNT

330102-00-25-10-02-00

The 330102-00-25-10-02-00 is a Bently Nevada 3300 XL 8 mm standard-mount proximity probe with a 3/8-24 UNF thread, armored cable, 1.0 m total length and ClickLoc connector.

TIP8 mm

MOUNTStandard

TOTAL LENGTH10 · 1.0 m

CABLEWith armor

MANUFACTURERBently Nevada · Baker Hughes

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

BENTLY NEVADA ● STANDARD-MOUNT ARMORED PROBE

3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM

330102-00-25-10-02-00

3/8-24 UNF · WITH ARMOR

Standard-Mount 3300 XL 8 mm Proximity Probe

MEASUREMENT ROLE

330102-00-25-10-02-00 is a 3300 XL 8 mm standard-mount armored probe for non-contact shaft vibration and position measurement with a compatible extension cable and Proximitor Sensor.

CONFIGURATION NOTE

For 330102-00-25-10-02-00, the official ordering table identifies code 00 as 0.0 in unthreaded length, 25 as a 2.5 in case length, 10 as a 1.0 m total length, 02 as a miniature ClickLoc coaxial connector, and 00 as approvals not required.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

CONFIGURATION DECODING

What is confirmed—and what requires verification

330102

Base modelStandard mount
3/8-24 UNF

Unthreaded length

Case length

Total length1.0 m (3.3 ft)

ConnectorMiniature ClickLoc
coaxial

ApprovalsNot required

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

3300 XL 8 mm System ↗

3300 XL 8 MM FAMILY

Engineering data at a glance

Click “+” to expand more specifications.

THREAD3/8-24 UNF

CASE LENGTH2.5 IN

TOTAL LENGTH1.0 M

CONSTRUCTIONWITH ARMOR

Official Bently Nevada product data.

Exact configuration verification Verify the complete order number and compatible 3300 XL 8 mm system components against the official datasheet for 330102-00-25-10-02-00.

General Information −

BrandBently Nevada

Part number330102-00-25-10-02-00

Product type3300 XL 8 mm Standard-Mount Armored Proximity Probe

Product family3300 XL 8 mm Proximity Transducer System

Mounting styleStandard mount

Mounting thread3/8-24 UNF-2A

Detailed Measurement Data ＋

System linear range2 mm (80 mils), approximately 0.25–2.3 mm from target

Recommended radial gap−9 Vdc, approximately 1.27 mm (50 mils)

Incremental scale factor7.87 V/mm (200 mV/mil), system-dependent tolerance

Cable and Installation ＋

Unthreaded length code 000.0 in

Overall case length code 252.5 in

Total length code 101.0 m (3.3 ft)

Connector / cable code 02Miniature ClickLoc coaxial connector, standard cable

ConstructionWith protective metal armor

Environment and Certification ＋

Environmental ratings and certification status depend on the complete probe, extension cable and Proximitor Sensor configuration. Verify 330102-00-25-10-02-00 against the current official manufacturer documentation.

Source: Bently Nevada 3300 XL 8 mm Proximity Transducer System, Document 141194. System-level values apply under the manufacturer’s stated test conditions.

FAQ

Questions Buyers Ask Most

What is 330102-00-25-10-02-00 used for?＋

330102-00-25-10-02-00 is a standard-mount 3300 XL 8 mm armored proximity probe for non-contact radial vibration and shaft-position measurement on rotating machinery.

What do the ordering codes in 330102-00-25-10-02-00 mean?＋

For 330102-00-25-10-02-00, code 25 specifies a 2.5 in case length and code 10 specifies a 1.0 m total length; the remaining codes identify 0.0 in unthreaded length, ClickLoc coaxial connector and approvals not required.

Does 330102-00-25-10-02-00 include armor?＋

Yes. 330102-00-25-10-02-00 is the with-armor 330102 construction and includes protective metal armor over the probe cable.

Is 330102-00-25-10-02-00 a complete vibration measurement system?＋

No. 330102-00-25-10-02-00 must be combined with a compatible extension cable and 3300 XL Proximitor Sensor with matching total electrical system length.

What quotation details are needed for 330102-00-25-10-02-00?＋

For 330102-00-25-10-02-00, provide the complete nameplate, Proximitor Sensor part number, extension-cable length, target material, quantity, destination and clear application photos.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete label and system details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
330102-00-25-10-02-00

Manufacturer documentation for the Bently Nevada 3300 XL 8 mm Proximity Transducer System.

3300 XL 8 mm Proximity Transducer System

Bently Nevada datasheet 141194. Refer to the probe ordering information for the 330102 standard-mount model with armor and the published 3300 XL 8 mm family specifications.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements on this product page are limited to publicly available Bently Nevada / Baker Hughes manufacturer documentation. No third-party product sources were used.

3300 XL SYSTEM RELATIONSHIP

How 330102-00-25-10-02-00 Fits into the 3300 XL 8 mm System

Bently Nevada is the brand; the 3300 XL 8 mm Proximity Transducer System is the product family and complete measurement system; and 330102-00-25-10-02-00 is the standard-mount armored probe configuration.

Bently Nevada · BRAND

3300 XL 8 mm SystemPRODUCT FAMILY · COMPLETE SYSTEM

SENSING COMPONENT

3300 XL 8 mm Probe

The 330102-00-25-10-02-00 detects shaft position and vibration through non-contact eddy-current sensing and adds protective cable armor.

INTERCONNECTION

3300 XL Extension Cable

The compatible extension cable links the probe to the Proximitor Sensor and completes the required electrical system length.

SIGNAL CONDITIONING

3300 XL Proximitor Sensor

The 3300 XL Proximitor Sensor conditions the probe signal into a voltage output for monitoring and machinery protection equipment.

System relationship: the probe, extension cable and Proximitor Sensor must be compatible and their total electrical system length must match the Bently Nevada 3300 XL 8 mm requirements.

APPLICATION AREAS

Application mind map for the 3300 XL 8 mm Probe

Radial VibrationNon-contact vibration measurement on rotating shafts

Shaft PositionStatic position measurement on fluid-film bearing machines

APPLICATION CENTER 3300 XL 8 mm Probe Standard-mount armored proximity sensing

Keyphasor ReferenceReference measurement for machine speed and phase

Speed MeasurementRotational speed measurement and monitoring
