Bently Nevada 330101-02-60-05-01-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-02-60-05-01-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-02-60-05-01-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-02-60-05-01-05 3300 XL 8 mm Proximity Probe

BENTLY NEVADA · 3300 XL 8 MM PROXIMITY PROBE

330101-02-60-05-01-05

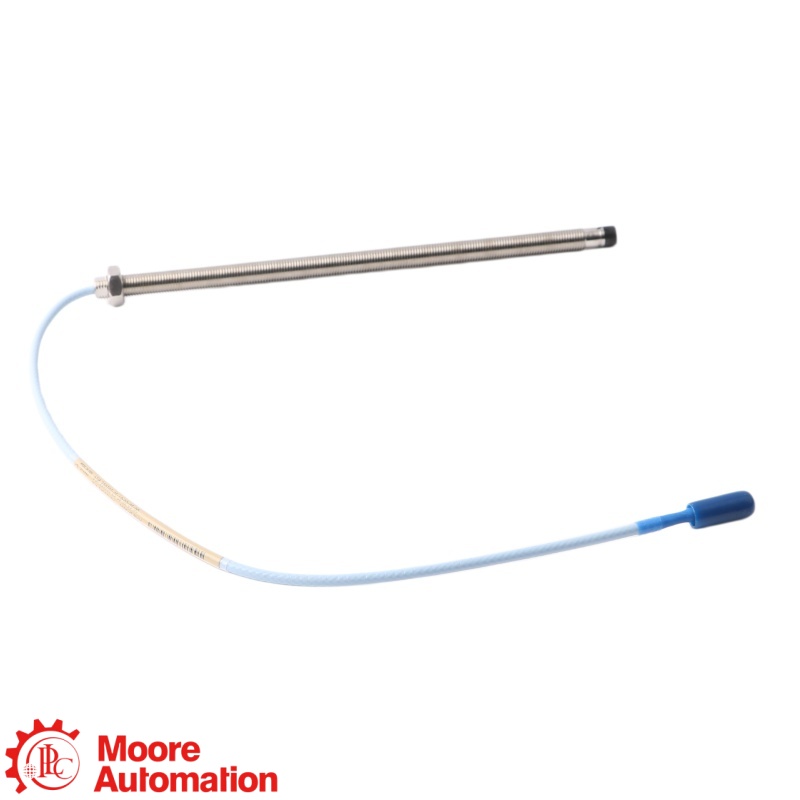

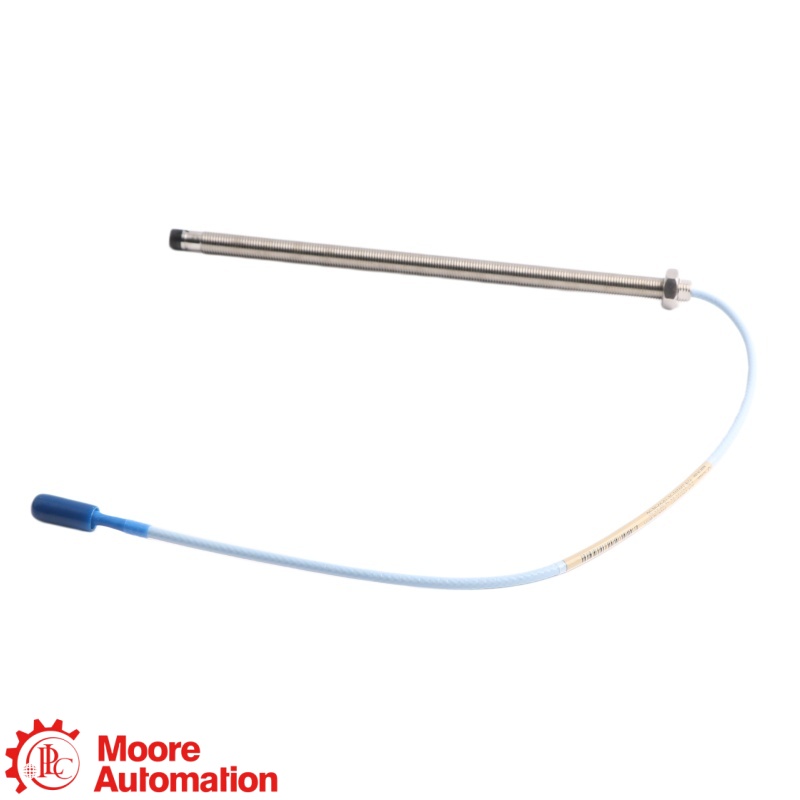

The 330101-02-60-05-01-05 is a 3/8-24 UNF unarmored 3300 XL 8 mm proximity probe with 0.2 in unthreaded length, 6.0 in case length, 0.5 m total length, a protected ClickLoc connector and multiple approvals.

THREAD3/8-24 UNF
CASE LENGTH6.0 in
TOTAL LENGTH0.5 m
CONNECTORClickLoc + protector
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Inquire Now
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL 8 MM PROXIMITY PROBE
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM

330101-02-60-05-01-05

BASE PART 330101

COMPLETE ORDER NUMBER REQUIRED

MODULE ROLE
330101-02-60-05-01-05 is an unarmored 3300 XL 8 mm proximity probe with 3/8-24 UNF threads. It measures shaft displacement through a compatible extension cable and Proximitor Sensor in a non-contact machinery-monitoring channel.
CONFIGURATION NOTE
For 330101-02-60-05-01-05, the fields define 0.2 in unthreaded length, 6.0 in case length, 0.5 m total length, a miniature ClickLoc connector with protector on standard cable and CSA, ATEX and IECEx approvals; confirm system length, mounting clearance and site certification before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 330101-02-60-05-01-05 reference is structured

330101
Base model
02
Order field 1
60
Order field 2
05
Order field 3
01
Order field 4
05
Final field
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Baker Hughes Datasheet 141194 ↗
330101 · 3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

Review the exact configuration before replacement.

THREAD3/8-24 UNF
CASE LENGTH6.0 in
TOTAL LENGTH0.5 m
CONNECTORClickLoc + protector
Baker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.
General Information ＋
BrandBently Nevada
Part number330101-02-60-05-01-05
Product type3300 XL 8 mm Proximity Probe
Product family3300 XL 8 mm Proximity Transducer System
ManufacturerBently Nevada / Baker Hughes
ORDER NUMBER CHECK ＋
Base reference330101
Complete model330101-02-60-05-01-05
Ordered fields02 · 60 · 05 · 01 · 05
INSTALLATION VERIFICATION ＋
Probe constructionUnarmored 3/8-24 UNF probe
System lengthProbe plus extension cable must match the Proximitor
Cable optionStandard cable with connector protector
Approval optionCSA, ATEX and IECEx
Linear system range2 mm (80 mil) with compatible 3300 XL system
DOCUMENTATION & ORDER CHECK ＋
Official referenceBaker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.
Quotation checkConfirm the complete model, quantity, labels, connectors, installed system and application conditions
FAQ

Questions Buyers Ask Most

What is 330101-02-60-05-01-05 used for?＋
330101-02-60-05-01-05 is a Bently Nevada 3300 XL 8 mm proximity probe that converts shaft-to-probe gap changes into a signal for a compatible extension cable, Proximitor Sensor and machinery-monitoring channel.
What do the 02 and 60 fields specify?＋
For 330101-02-60-05-01-05, field 02 specifies 0.2 in of unthreaded length and field 60 specifies a 6.0 in overall case length. Both dimensions must suit the probe bracket and available installation clearance.
Does this probe include a connector protector?＋
Yes. The connector-and-cable field 01 identifies a miniature coaxial ClickLoc connector with a connector protector on standard cable, so the mating extension-cable connector and protector arrangement must be compatible.
Which Proximitor Sensor is compatible with this probe?＋
330101-02-60-05-01-05 belongs to the 3300 XL 8 mm system and must be used with a matching 3300 XL 8 mm extension cable and Proximitor Sensor. The probe and extension-cable lengths together must equal the Proximitor Sensor system length.
Can this probe replace another 330101 directly?＋
A shared 330101 base does not guarantee direct interchangeability because unthreaded length, case length, total cable length, connector protection and approvals can differ. Compare the complete order number and installation dimensions before replacement.
What must be checked before installation?＋
Confirm the 3/8-24 UNF thread, 6.0 in case clearance, 0.5 m probe lead, connector protector, extension-cable length, Proximitor system length, target material and hazardous-area requirements before installation.
What information should be supplied for a quotation?＋
Provide the complete 330101-02-60-05-01-05 order number, quantity, clear nameplate and connector photos, installed extension-cable and Proximitor numbers, required system length, mounting dimensions and site approval requirements.
CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Manuals and Official References for 330101-02-60-05-01-05

Official Baker Hughes manufacturer-reference information for 330101-02-60-05-01-05.

3300 XL 8 mm Proximity Probe

Baker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, nameplate photos and your technical or purchasing question.

✉ EMAIL · sales5@mooreplc.comWHATSAPP · +86 153 5940 8275
Baker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM RELATIONSHIP

How 330101-02-60-05-01-05 fits into the system

Bently Nevada is the manufacturer, 3300 XL 8 mm Proximity Transducer System is the system context, and 330101-02-60-05-01-05 is the complete configured reference.

PRODUCT ENTITY3300 XL 8 mm Proximity Probe
CONFIGURATION02 · 60 · 05 · 01 · 05
COMPATIBILITYVerify complete installed system
APPLICATION AREAS

Application and sourcing checks for 330101-02-60-05-01-05

Probe constructionUnarmored 3/8-24 UNF probe
System lengthProbe plus extension cable must match the Proximitor
Cable optionStandard cable with connector protector
