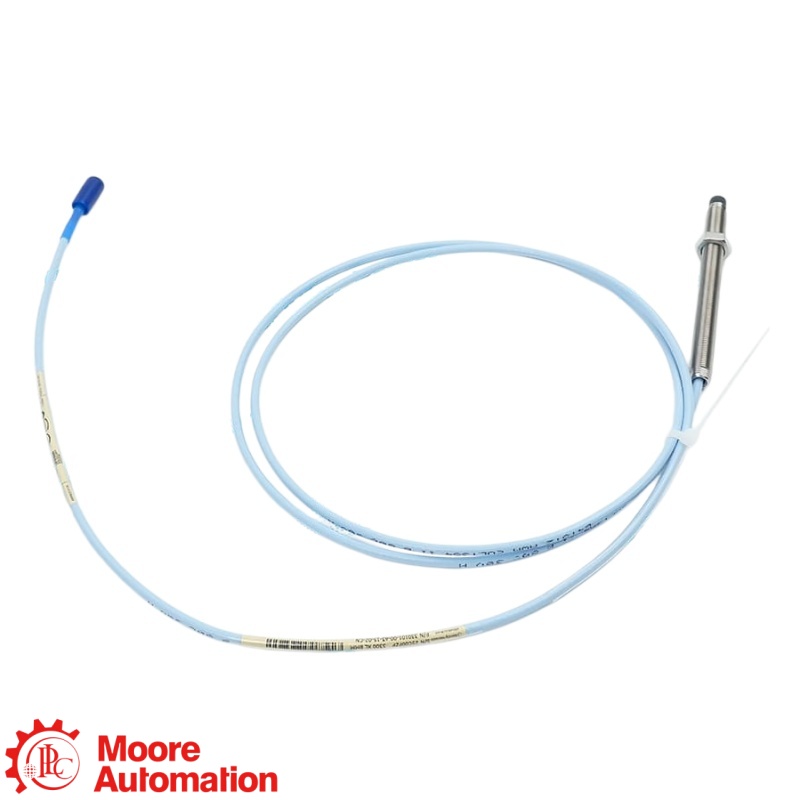

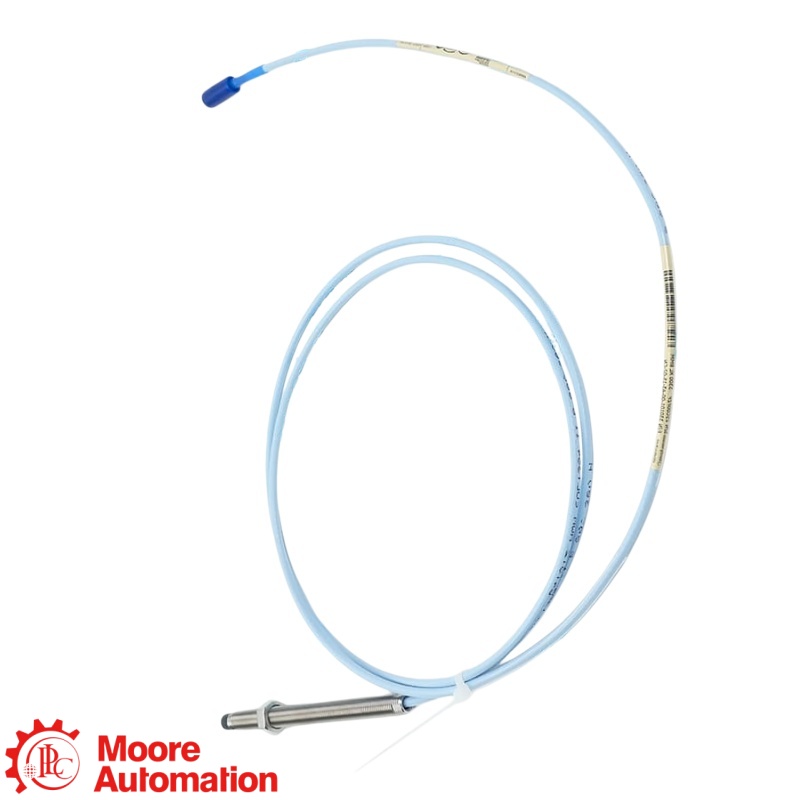

Bently Nevada 330101-00-44-15-02-CN 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-00-44-15-02-CN 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-00-44-15-02-CN 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-00-44-15-02-CN 3300 XL 8 mm Proximity Probe

BENTLY NEVADA · 3300 XL 8 MM PROXIMITY PROBE

330101-00-44-15-02-CN

The 330101-00-44-15-02-CN is a 3/8-24 UNF 3300 XL 8 mm unarmored proximity probe with a 4.4 in case, 1.5 m total length, miniature ClickLoc connector and China approval option.

PROBE FAMILY330101
CASE LENGTH4.4 in
TOTAL LENGTH1.5 m
APPROVALCN
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Inquire Now
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL 8 MM PROXIMITY PROBE
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM

330101-00-44-15-02-CN

BASE PART 330101

COMPLETE ORDER NUMBER REQUIRED

MODULE ROLE
330101-00-44-15-02-CN is an unarmored 3300 XL 8 mm proximity probe with 3/8-24 UNF threads. It senses shaft displacement for a compatible extension cable and Proximitor Sensor in a non-contact machinery-monitoring channel.
CONFIGURATION NOTE
For 330101-00-44-15-02-CN, the fields specify 0.0 in unthreaded length, 4.4 in case length, 1.5 m total length, a miniature ClickLoc connector on standard cable without a protector and the -CN China approval option; confirm system length, connector and site markings before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 330101-00-44-15-02-CN reference is structured

330101
Probe family3/8-24 UNF
00
Unthreaded length0.0 in
44
Case length4.4 in
15
Total length1.5 m
02
Connector / cableClickLoc · standard
CN
Country suffixChina marking
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada 3300 XL 8 mm Proximity Probe ↗
330101 8 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

THREAD3/8-24 UNF
CASE LENGTH4.4 in
TOTAL LENGTH1.5 m
LINEAR RANGE2 mm (80 mil)
Official Baker Hughes datasheet 141194 and Approvals Quick Reference Guide 108M1756.
Official product verification Verify the complete order number 330101-00-44-15-02-CN, confirm the 4.4 in case, 1.5 m standard unarmored cable, miniature ClickLoc connector, matching extension-cable length and -CN site approval markings before ordering.
General Information −
BrandBently Nevada
Part number330101-00-44-15-02-CN
Product type3300 XL 8 mm Proximity Probe
Product family3300 XL 8 mm Proximity Transducer System
Probe construction3/8-24 UNF · standard cable · no armor
ManufacturerBently Nevada / Baker Hughes
ORDER NUMBER CHECK ＋
Base part330101
Complete model330101-00-44-15-02-CN
Cable / approval1.5 m · ClickLoc · CN
INSTALLATION VERIFICATION ＋
System compatibilityMatch 3300 XL 8 mm extension cable and Proximitor
Electrical lengthProbe plus extension cable must match sensor length
ConnectorMiniature ClickLoc without connector protector
MountingConfirm 3/8-24 UNF thread and 4.4 in case clearance
Approval checkConfirm -CN markings and hazardous-area requirements
DOCUMENTATION & ORDER CHECK ＋
Reference: Baker Hughes datasheet 141194 and Approvals Quick Reference Guide 108M1756.
Source: Baker Hughes datasheet 141194 and Approvals Quick Reference Guide 108M1756.
FAQ

Questions Buyers Ask Most

What is 330101-00-44-15-02-CN used for?＋

330101-00-44-15-02-CN is a Bently Nevada 3300 XL 8 mm proximity probe for non-contact shaft position and vibration measurement. It requires a compatible extension cable, Proximitor Sensor and 200 mV/mil monitor channel.

What do -00, -44 and -15 mean on 330101-00-44-15-02-CN?＋

330101-00-44-15-02-CN uses -00 for 0.0 in unthreaded length, -44 for a 4.4 in case and -15 for 1.5 m total length. These fields determine fit and the required extension cable.

What does -02 specify on 330101-00-44-15-02-CN?＋

330101-00-44-15-02-CN uses a miniature ClickLoc connector on standard cable without a protector. The mating connector and required mechanical protection must match; FluidLoc and protector options are different.

How does 330101-00-44-15-02-CN differ from 330102?＋

330101-00-44-15-02-CN belongs to the unarmored 330101 3/8-24 UNF family, while 330102 identifies the corresponding armored probe. Cable protection, routing clearance and hardware differ.

Which extension cable works with 330101-00-44-15-02-CN?＋

330101-00-44-15-02-CN has 1.5 m total probe length, so the extension cable must make the combined electrical length equal the installed Proximitor length. Connector, armor and approval suffix must also match.

What does the -CN option require for 330101-00-44-15-02-CN?＋

330101-00-44-15-02-CN uses the China hazardous-area option covering NEPSI or CCC requirements as applicable and including ATEX or IECEx markings where applicable. Verify the exact label and destination-site certification.

What belongs in a 330101-00-44-15-02-CN inquiry?＋

330101-00-44-15-02-CN should be quoted with the complete code, probe and connector photos, quantity, destination, extension-cable and Proximitor numbers, total system length, mounting clearance, target material and hazardous-area classification.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330101-00-44-15-02-CN

Official Baker Hughes manufacturer-reference information for the Bently Nevada 330101-00-44-15-02-CN 3300 XL 8 mm proximity probe.

3300 XL 8 mm Proximity Probe

Official Baker Hughes 3300 XL 8 mm system datasheet and approval guide covering 330101 probe ordering fields, system limits and the -CN option.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

The linked Baker Hughes datasheet 141194 defines the 330101 family and fields, while approval guide 108M1756 confirms the -CN option for 330101.

3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM RELATIONSHIP

How 330101-00-44-15-02-CN fits into the 3300 XL 8 mm system

Bently Nevada is the brand; 3300 XL 8 mm Proximity Transducer System is the product family; and 330101-00-44-15-02-CN is the configured unarmored probe requiring exact length, connector and approval verification.

Bently Nevada · BRAND
3300 XL 8 mm Proximity Probe3300 XL 8 MM PROXIMITY PROBE
SYSTEM ROLE

3300 XL 8 MM PROXIMITY PROBE

Use the exact order number to match case dimensions, cable length, ClickLoc connector, extension cable, Proximitor calibration and approval option.

COMPATIBILITY

VERIFY BEFORE REPLACEMENT

Confirm 3/8-24 UNF mounting, 4.4 in case clearance, 1.5 m cable, total system length, connector and -CN markings.

PROCUREMENT

COMPLETE MODEL REQUIRED

Provide photos and the full part number for quotation.

System relationship: verify the host system, revision, connectors, installation and application requirements.
APPLICATION AREAS

Application mind map for 330101-00-44-15-02-CN

Maintenance ReplacementReplace a failed installed component after exact model verification
Spare-Part PlanningHold a model-matched spare for planned maintenance
APPLICATION CENTER 330101-00-44-15-02-CN 3300 XL 8 mm proximity probe for model-matched shaft vibration and position monitoring
Compatibility ReviewCompare the complete code, dimensions, system length, connectors, approvals and monitor compatibility before shipment
Documentation CheckUse Baker Hughes datasheet 141194 and approval guide 108M1756, then confirm the complete -CN order code.
