Bently Nevada 3300/16-15-01-03-00-00-00 XY/GAP Monitor

Product Overview

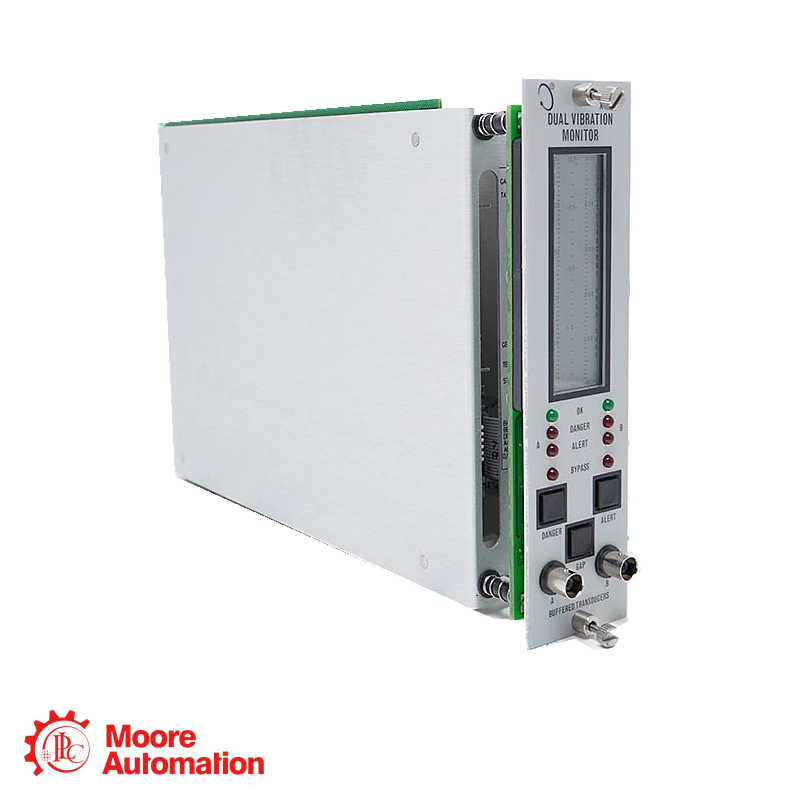

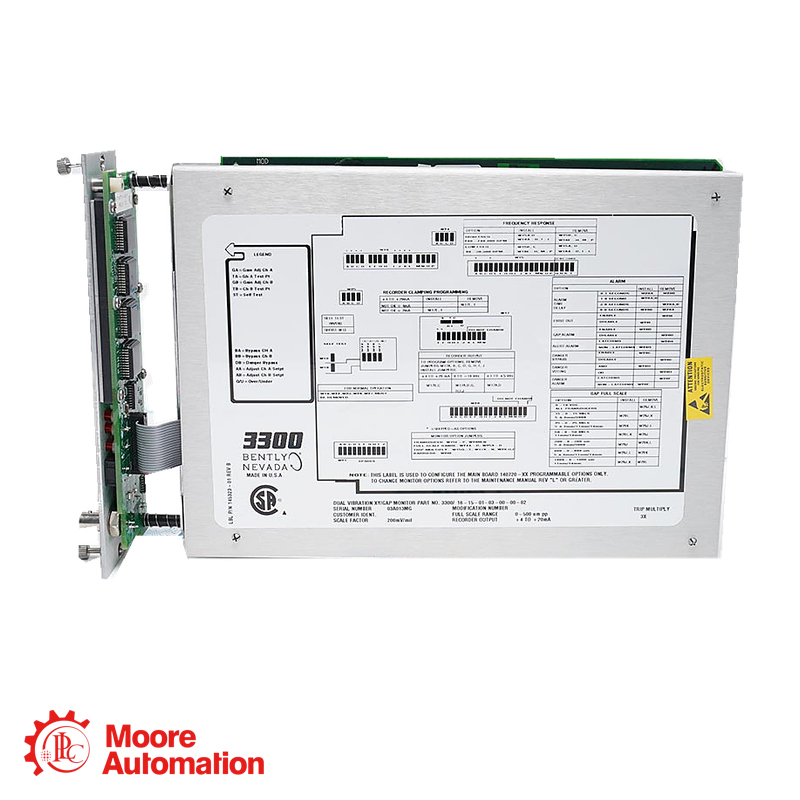

The Bently Nevada 3300/16-15-01-03-00-00-00 is an XY/GAP Dual Vibration Monitor for the 3300 machinery protection system. It continuously measures two independent channels of radial shaft vibration and average shaft position, or probe gap. This configuration has a 0–500 µm peak-to-peak measurement range, accepts compatible 200 mV/mil Proximitor sensor inputs, and includes a quad epoxy-sealed alarm relay module. It is ordered without agency approval, safety barriers, or trip multiplication.

Order Number Breakdown
3300/16 — XY/GAP Dual Vibration Monitor
15 — 0–500 µm peak-to-peak full-scale range
01 — 3300 8 mm, 3300 XL 8 mm, or 7200 5 mm/8 mm Proximitor sensor input; 200 mV/mil
03 — Quad relay module, epoxy-sealed
00 — Agency approval not required
00 — No safety barrier
00 — No trip multiply

Technical Information

Benefits&Features

• Monitors two independent radial-vibration channels.
• Measures average shaft position through probe-gap voltage.
• Supports compatible 3300 8 mm, 3300 XL 8 mm, and 7200 5 mm or 8 mm Proximitor sensors.
• Provides Alert, Danger, OK, and Bypass indication.
• Offers individual recorder outputs for both channels.
• Occupies one 3300 rack position.
• Includes quad epoxy-sealed alarm relays for this exact configuration.

Application Areas

-Two-channel relative shaft-vibration monitoring in existing 3300 racks.
-X/Y radial-vibration measurement on turbines, compressors, pumps, and other rotating machinery.
-Probe-gap and average shaft-position monitoring.
-Machinery protection systems using compatible 200 mV/mil proximity transducers.
-Exact-configuration replacement where range, input type, relay arrangement, barriers, and trip-multiply options must match the installed unit.

Main brands

Frequently Asked Questions

What does the Bently Nevada 3300/16-15-01-03-00-00-00 monitor?
The Bently Nevada 3300/16-15-01-03-00-00-00 monitors two independent radial-vibration channels and average shaft position using compatible proximity-probe systems.

What measurement range is configured in the Bently Nevada 3300/16-15-01-03-00-00-00?
The 15 range option configures the Bently Nevada 3300/16-15-01-03-00-00-00 for 0–500 µm peak-to-peak vibration measurement.

Which transducers are compatible with the Bently Nevada 3300/16-15-01-03-00-00-00?
Its 01 input option supports 3300 8 mm, 3300 XL 8 mm, and 7200 5 mm or 8 mm Proximitor sensors with 200 mV/mil sensitivity.
