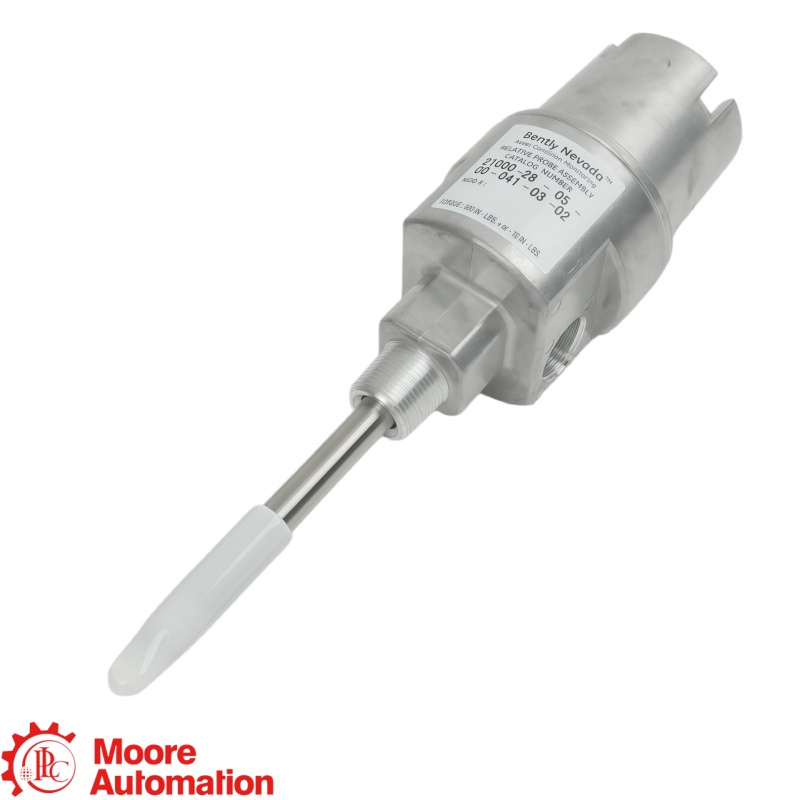

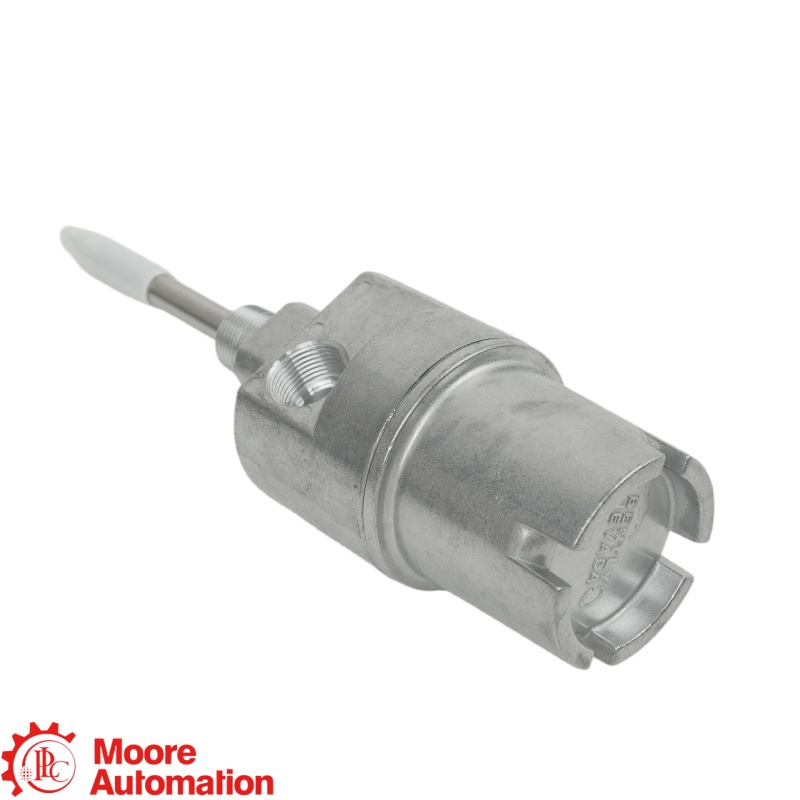

Bently Nevada 21000-28-05-00-035-01-02 Aluminum Proximity Probe Housing Assembly

21000 · PROBE HOUSING

21000-28-05-00-035-01-02

The 21000-28-05-00-035-01-02 is an aluminum proximity probe housing assembly with a 3300 XL 8 mm multiple-approval probe, 0.5 m cable, no standoff adapter, 3.5 in penetration and 3/4-14 NPT mounting thread.

HOUSINGAluminum

THREAD3/4-14 NPT

PENETRATION035 · 3.5 in

PROBE / CABLEXL 8 mm · 0.5 m

MANUFACTURERBently Nevada · Baker Hughes

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

BENTLY NEVADA ● PROBE HOUSING ASSEMBLY

21000 PROXIMITY PROBE HOUSING

21000-28-05-00-035-01-02

ALUMINUM · 3/4-14 NPT

21000 Aluminum Proximity Probe Housing Assembly

MEASUREMENT ROLE

21000-28-05-00-035-01-02 is an all-metal housing assembly for externally mounting and protecting a compatible proximity probe at the machine casing.

CONFIGURATION NOTE

For 21000-28-05-00-035-01-02, the official ordering table identifies 28 as a 3300 XL 8 mm multiple-approval probe, 05 as 0.5 m cable, 00 as no standoff adapter, 035 as 3.5 in penetration, 01 as one 3/4-14 NPT explosion-proof fitting, and 02 as 3/4-14 NPT mounting thread.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

CONFIGURATION DECODING

What is confirmed—and what requires verification

21000

Base modelAluminum
housing

Probe option

Cable length

StandoffNone

035

Penetration3.5 in
penetration

FittingExplosion-proof

Thread3/4-14 NPT

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

21000 Housing ↗

21000 HOUSING

Engineering data at a glance

Click “+” to expand more specifications.

HOUSING MATERIALAluminum / 304 SST

PROBE OPTION28 · XL 8 MM

PENETRATION3.5 IN

MOUNTING3/4-14 NPT

Official Bently Nevada product data.

Exact configuration verification Verify the complete order number and compatible housing, probe and mounting configuration against the official datasheet for 21000-28-05-00-035-01-02.

General Information −

BrandBently Nevada

Part number21000-28-05-00-035-01-02

Product type21000 Proximity Probe Housing Assembly

Product family21000, 24701 and 164818 Proximity Probe Housing Assemblies

Installation styleExternal housing mount

Mounting thread3/4-14 NPT

Detailed Measurement Data ＋

Housing materialAluminum body with 304 stainless steel sleeve

Typical mass1.1 kg (2.4 lb), without fittings

Probe temperature range-51°C to +177°C (-60°F to +351°F) for the XL 8 mm probe

Cable and Installation ＋

Probe option 283300 XL 8 mm, multiple approvals

Cable length code 050.5 m

Standoff code 00None

Penetration code 0353.5 in (89 mm)

Fitting / thread options01 one 3/4-14 NPT explosion-proof fitting; 02 3/4-14 NPT mounting thread

Environment and Certification ＋

Environmental ratings and certification status depend on the complete probe, extension cable and Proximitor Sensor configuration. Verify 21000-28-05-00-035-01-02 against the current official manufacturer documentation.

Source: Bently Nevada 21000, 24701 and 164818 Proximity Probe Housing Assemblies, Document 141600. System-level values apply under the manufacturer’s stated test conditions.

FAQ

Questions Buyers Ask Most

What is 21000-28-05-00-035-01-02 used for?＋

21000-28-05-00-035-01-02 externally mounts and protects a 3300 XL 8 mm proximity probe for shaft vibration or position measurement.

What do the ordering codes in 21000-28-05-00-035-01-02 mean?＋

For 21000-28-05-00-035-01-02, codes 28/05 specify a 3300 XL 8 mm multiple-approval probe with 0.5 m cable; 00 specifies no standoff, 035 specifies 3.5 in penetration, and 01/02 specify the fitting and mounting thread.

What materials are used in 21000-28-05-00-035-01-02?＋

21000-28-05-00-035-01-02 uses an aluminum housing body with a 304 stainless steel probe sleeve.

Does 21000-28-05-00-035-01-02 include a probe?＋

Yes. Option 28 in 21000-28-05-00-035-01-02 specifies a 3300 XL 8 mm probe with selectable hazardous-area approvals; verify the extension cable and Proximitor Sensor separately.

What quotation details are needed for 21000-28-05-00-035-01-02?＋

For 21000-28-05-00-035-01-02, provide the housing nameplate, machine-case thread, required probe penetration, hazardous-area requirements, conduit arrangement, quantity and destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete label and system details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
21000-28-05-00-035-01-02

Manufacturer documentation for the Bently Nevada 21000, 24701 and 164818 Proximity Probe Housing Assemblies.

21000, 24701 and 164818 Proximity Probe Housing Assemblies

Bently Nevada datasheet 141600. Refer to the official 21000 ordering table, mounting dimensions, fitting options and material specifications.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements on this product page are limited to publicly available Bently Nevada / Baker Hughes manufacturer documentation. No third-party product sources were used.

PROBE HOUSING RELATIONSHIP

How 21000-28-05-00-035-01-02 Fits into an Externally Mounted Proximity System

Bently Nevada is the brand; the 21000, 24701 and 164818 Proximity Probe Housing Assemblies provides external proximity-probe mounting; and 21000-28-05-00-035-01-02 is the aluminum 3/4-14 NPT configuration with an included XL 8 mm probe.

Bently Nevada · BRAND

21000 Housing AssemblyEXTERNAL PROBE MOUNTING

INCLUDED PROBE

3300 XL 8 mm Probe · Option 28

Option 28 supplies the 3300 XL 8 mm sensing probe with selectable hazardous-area approvals.

INTERCONNECTION

0.5 m Probe Cable

Code 05 provides a 0.5 m probe cable routed through the housing and conduit fitting.

HOUSING / MOUNTING

21000 Aluminum Housing

The aluminum body, 304 stainless steel sleeve and 3/4-14 NPT thread protect and position the probe.

System relationship: the housing positions the included XL 8 mm probe; the matching extension cable and Proximitor Sensor remain part of the complete measurement loop.

APPLICATION AREAS

Application map for the 21000 Probe Housing Assembly

External Probe MountingMachine-casing installation outside the bearing housing

Hazardous AreasExplosion-proof conduit fitting and selectable probe approvals

APPLICATION CENTER 21000 Housing Assembly Aluminum external-mount probe protection

Adjustable Penetration3.5 in probe penetration with no standoff adapter

Probe ProtectionAll-metal body and stainless steel sleeve
