Airflow Monitor LCF 013 Pneumatic Sensor
Airflow Monitor LCF 013 Pneumatic Sensor
Airflow Monitor LCF 013 Pneumatic Sensor

Airflow Monitor LCF 013 Pneumatic Sensor


  • Brand :

    Airflow Monitor

  • Part Number :

    LCF 013

  • Weight :

    0.08 kg

  • Dimension :

    2x1.5x58cm

  • Country of Origin :

    USA

  • HS Code :

    8537101190

  • Description :

    Pneumatic Sensor
Inquire Now

Free Online Quotes

Sales manager : Chloe

Email : plc@mvme.cn

Phone/WhatsApp : +86 18030170117


Basic Information

Contact type: Reed / magnet contact
NC (normally closed) Contact open with air flow
NO (normally open) Contact closed with air flow
Switching threshold of air flow speed: >8.2 ft/s (2.5 m/s)
Hysteresis: 3.3ft/s (1 m/s) - fixed
Contact resistance incl. wire: 370m
Service life: > 100,000 cycles
Max. switching capacity: 10W (resistive load)
Max. switching voltage:
NC:DC240V/NO:DC60V
Max. switching current:
NC: DC 500mA/ NO: DC 170mA
Connection:
2 X single strand AWG 26, length 500 mm, tip of
stranded wire stripped/tinned (5 mm)
Housing: Plastic, UL 94H-B, black
Operating/storage temperature:
-4 to 122°F (-20 to 50°C)/ -4 to 176°F (-20 to 80°C)
Protection type: IP 20

Product Description

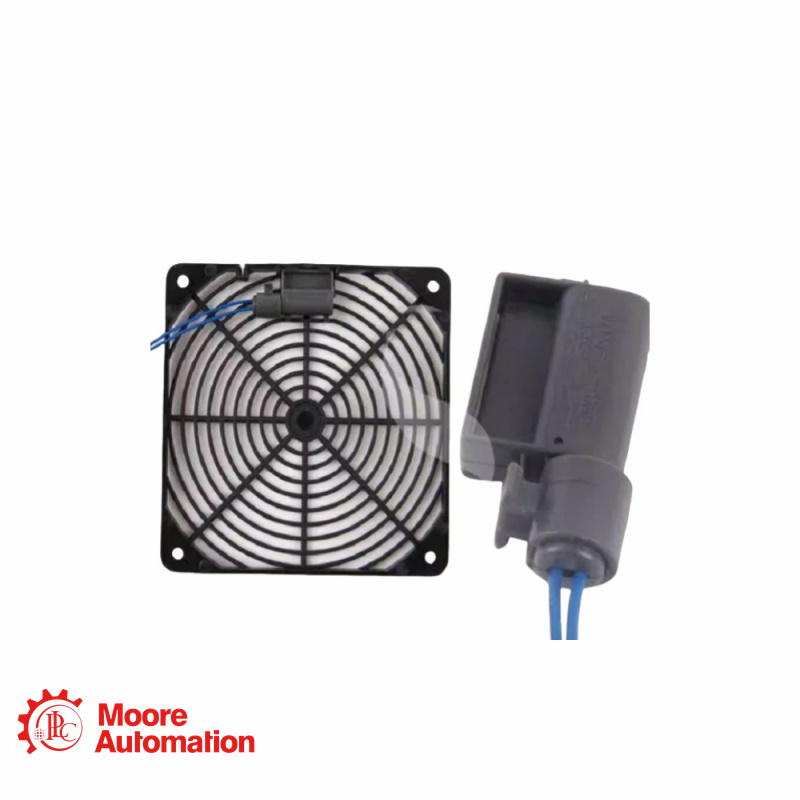

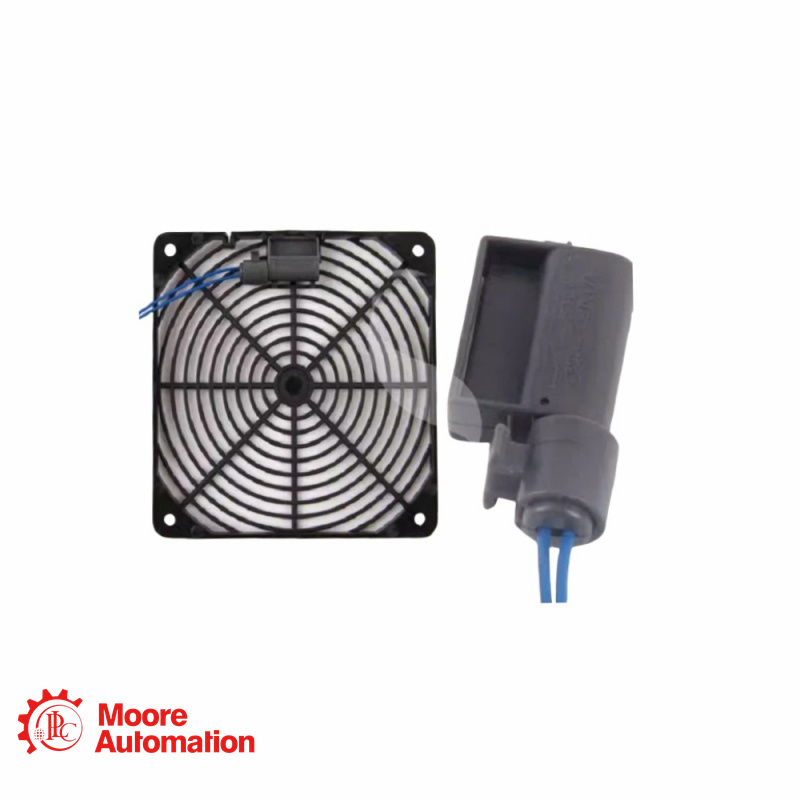

The LC 013/LCF 013 air-flow monitor provides a simple but reliable alternative to indicate positive or negative air flow of fans.When properly installed and connected in series with an optical (i.e. LED) or audible signaling device, a bi-directional switch will activate an electrical contact if the air flow of the fan falls below 8.2ft/s, thus either turning the signaling device on or off.
