330930-045-04-00 - BENTLY NEVADA NSv Extension Cable

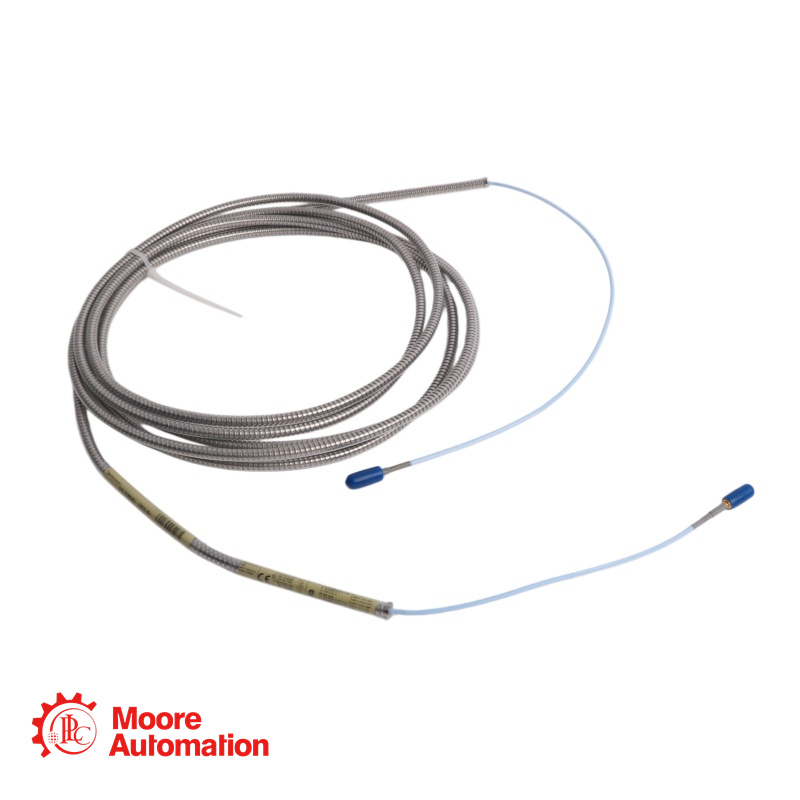

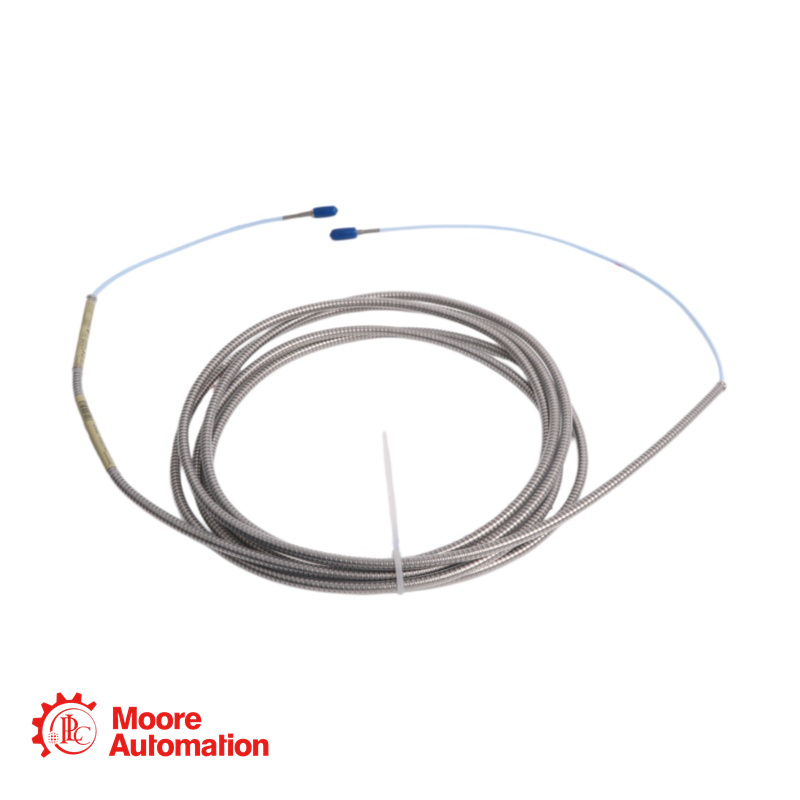

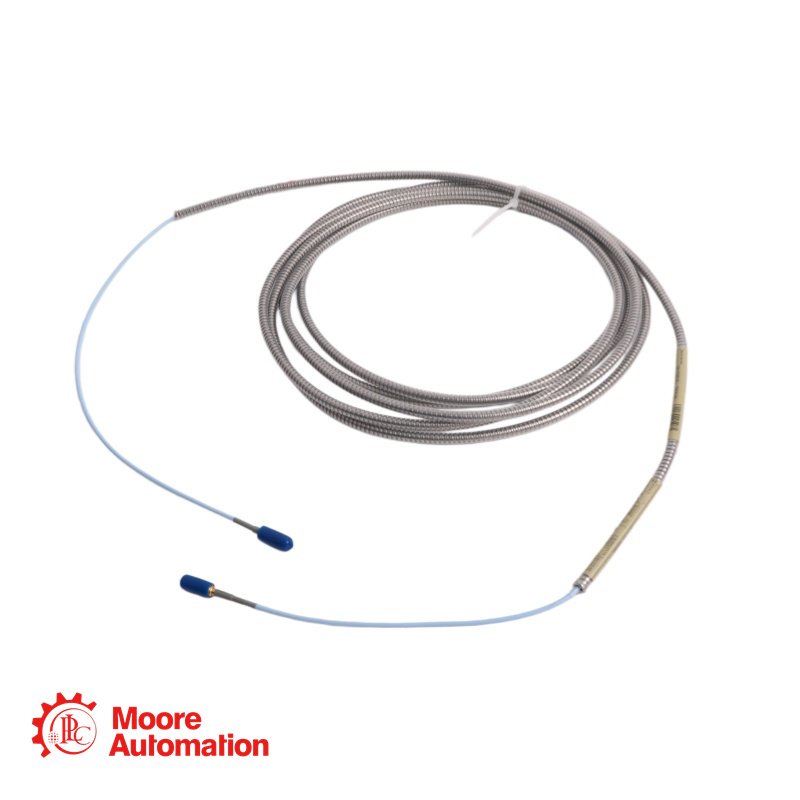

BENTLY NEVADA 330930-045-04-00 3300 NSv Extension Cable

Sales Manager: Frida

Email: sales5@mooreplc.com

The 3300 NSv probe comes in varying probe case configurations, including armored and unarmored 1/4-28, 3⁄8-24, M8X1 and M10X1 probe threads. The reverse mount 3300 NSv probe comes standard with either 3⁄8-24 or M10X1 threads. All components of the transducer system have gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place and prevent the connection from loosening. The patented TipLoc molding method provides a robust bond between the probe tip and the probe body. Bently Nevada’s patented CableLoc design provides 220 N (50 lb) of pull strength and securely attaches the probe cable to the probe tip. Connector protectors are recommended for use on the probe-to-extension cable connection, as well as on the cable-to-Proximitor Sensor connection. Connector protectors prevent most liquids from entering into the ClickLoc connectors and adversely affecting the electrical signal

330930-AAA-BB-CC

A: Cable Length Option: 045 4.5 meters (14.8 feet)

B: Connector and Cable Option: 04 With stainless steel armor, with FEP jacket, with connector protector

C: Agency Approval Option: 00 Not Required

Q:What is the primary application for this cable?

A:It is used within the 3300 XL NSv Proximity Transducer System, specifically designed for centrifugal air compressors, refrigeration compressors, and other tight industrial machinery with small shaft diameters or confined mounting clearance.

Q:What is the operating temperature range?

A:The cable is rated to function reliably across an extreme range of -51°C to +177°C (-60°F to +351°F)

Q:What is the physical pull strength of this cable?

A:The cable-to-probe connector interface is engineered to withstand a maximum rated tensile pull strength of 220 N (50 lb).
