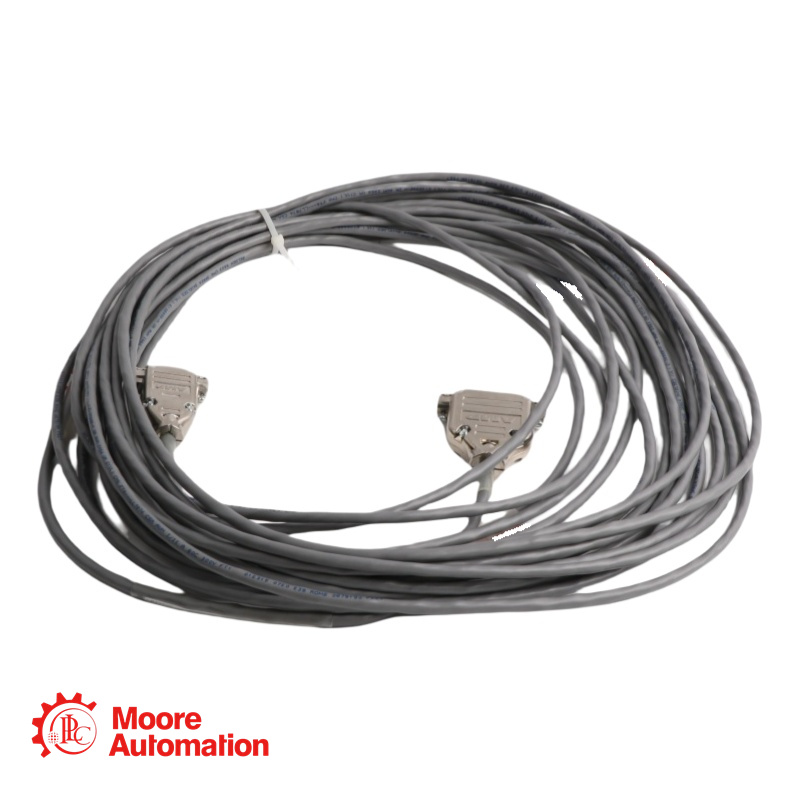

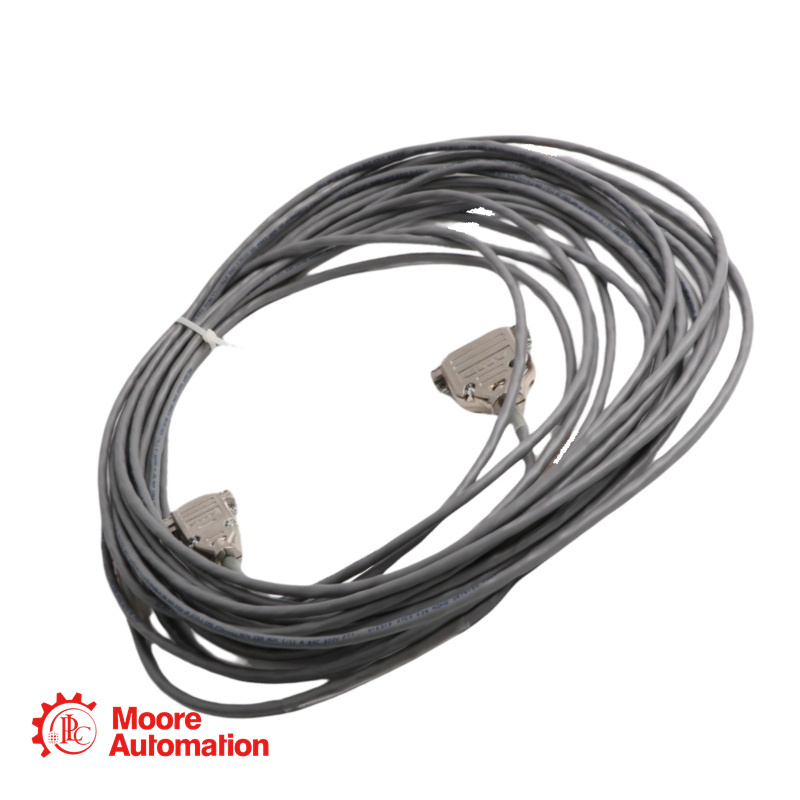

130539-33 Bently Nevada Interconnect Cable

How can I get price?

130539-33

Sales Manager:Frida
◆Phone/Whatsapp:+86 15359408275
◆Email:sales5@mooreplc.com

Description - Interconnect Cable

130539-33

3-conductor shielded 18 AWG (1.0 mm2) cable with 3-socket plug and fluorosilicone elastomer boot at one end, terminal lugs at the other end. Minimum length of 2.0 ft (0.6 m), maximum length of 99 ft (30 m).

Parameter - Interconnect Cable

130539-33

Description: 33-Foot (10 m) Interconnect Cable with Boot, 3-Pin MIL-C-5015 Plug to Terminal Lugs
AWG: 18 AWG (1.0 mm²), 3-Conductor Shielded
Jacket Material: Fluorosilicone Elastomer Boot (High Temp/Chemical Resistant)
Temp Range: -55°C to +121°C (-67°F to +250°F)
Application: Connection between 330400/330425/330450 Signal Conditioning Unit and Monitoring System
Compliance: CE, ATEX/IECEx (Intrinsically Safe Entity Wiring Compliant)
Length (ft/m): 33 ft / 10 m
Weight (approx): 1.4 kg (3.1 lbs)

FAQ - Interconnect Cable

130539-33

Q: Why does the 130539 series use 18 AWG wire while the standard 16925 uses 22 AWG?
A: Voltage Drop & Noise Immunity. Over the 33 ft (10 m) run, the thicker 18 AWG conductor minimizes DC resistance. More importantly, in high EMI environments (VFD-driven motors), the larger gauge improves shield effectiveness and reduces the signal-to-noise ratio degradation for the 100 mV/g output signal.

Q: What is the purpose of the "Fluorosilicone Elastomer Boot" on the connector end?
A: Moisture and Contamination Seal. Standard tape or shrink wrap degrades in hot, oily refinery or chemical plant environments. The integral boot provides a permanent IP68-equivalent seal at the 3-pin MIL-C-5015 connection point, preventing "Pin A to Pin B" shorting due to conductive water ingress.

Q: Can I cut the terminal lug end to shorten the cable in the junction box?
A: Yes. The terminal lugs (ring terminals) are designed for field termination inside the monitor rack or junction box. However, do not cut the connector end. The connector is potted and sealed at the factory to maintain the intrinsically safe (IS) separation distance.
